Mug Material/Welding Wire for Stainless Steel DW-308
[Features]
· Used for welding of 18%Cr-8%Ni steel (SUS304, etc.). An adequate amount of ferrite in the structure provides low cracking susceptibility and excellent weldability. Able to achieve weld metal with excellent corrosion resistance and mechanical properties. Suitable for flat welding, fillet welding, etc.
· Used for welding of 18%Cr-8%Ni steel (SUS304, etc.). An adequate amount of ferrite in the structure provides low cracking susceptibility and excellent weldability. Able to achieve weld metal with excellent corrosion resistance and mechanical properties. Suitable for flat welding, fillet welding, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| DW-308-0.9-5 |
| DW-308-1.2-12.5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wire Diameter (mm) | Amount Of Content | Mass (g) | |
|---|---|---|---|---|---|---|---|
202.89 € | 1 | 5 Days | 0.9 | 1 Box (5 kg) | 5000 | ||
334.55 € | 1 | 7 Days | 1.2 | 1 Box (12.5 kg) | 12500 |
Loading...

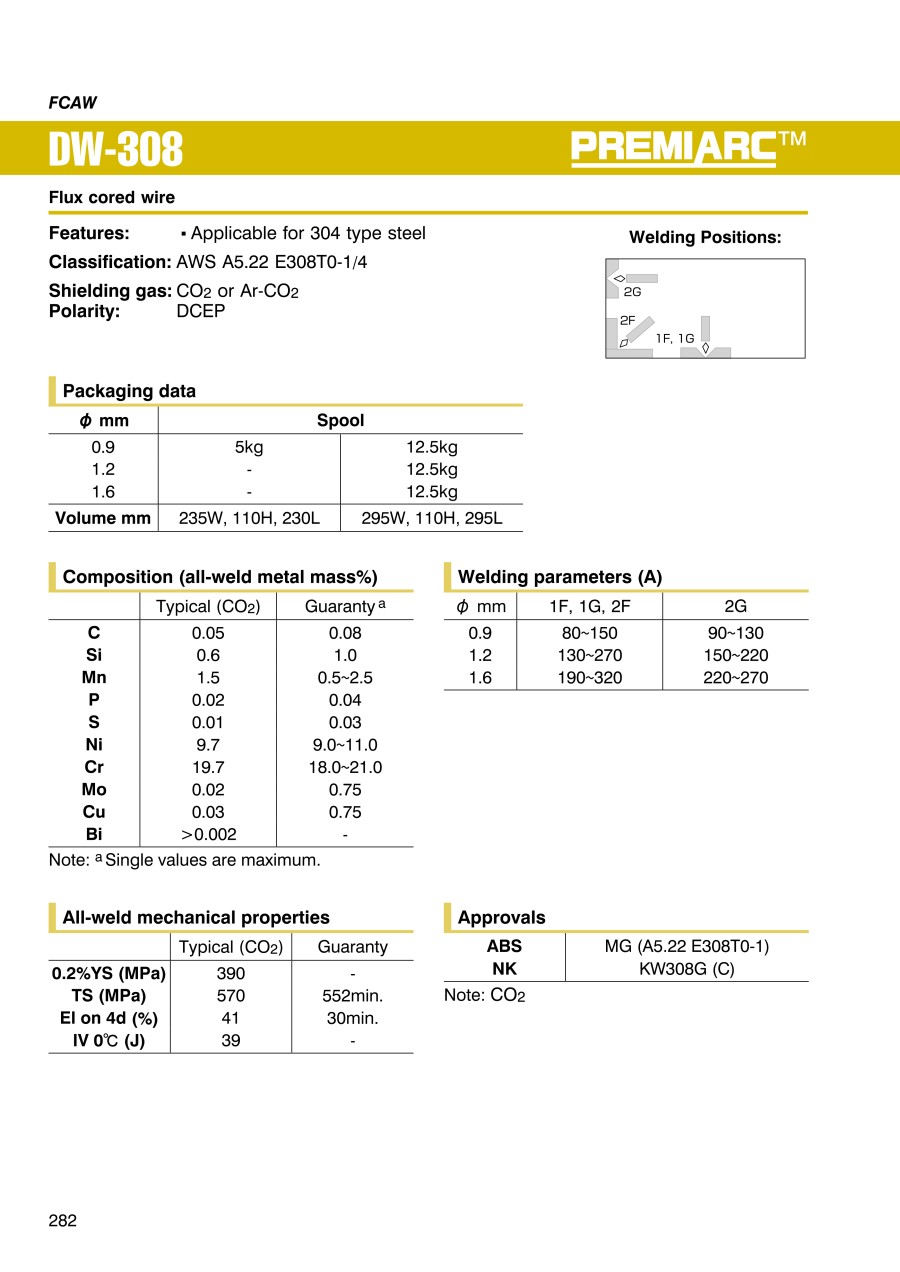

Basic information
| Product Type | Welding wire | JIS Standard | Z3323 TS308-FB0 | AWS Standard | A5.22 E308T0-1,E308T0-4 |
|---|---|---|---|---|---|
| Application and Usage Characteristic | 18% Cr-8% Ni steel (SUS 304 etc.) welding. It contains an appropriate amount of ferrite in the structure, has low susceptibility to cracking, and has excellent weldability. It is possible to obtain a weld metal with excellent corrosion resistance and mechanical properties. It is suitable for downward and horizontal fillets and other welding. | Chemical Composition of Deposited Metal C(%) | 0.05 | Chemical Composition of Deposited Metal Si(%) | 0.6 |
| Chemical Composition of Deposited Metal Mn(%) | 1.5 | Chemical Composition of Deposited Metal P(%) | 0.02 | Chemical Composition of Deposited Metal S(%) | <0.01 |
| Ni(%) | 9.7 | Cr(%) | 19.7 | Example of Weld Metal Mechanical Properties 0.2% Proof Stress MPa | 390 |
| Mechanical Properties of Weld Metal Proof Stress, Tensile Strength MPa | 570 | Mechanical Properties of Weld Metal Proof Stress, Elongation(%) | 41 | Mechanical Properties of Weld Metal Proof Stress, Absorption Energy(J) | 39 |
| Shield Gas | CO2/Ar-CO2 | Authorized by the Classification Society of Japan | NK,ABS |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
