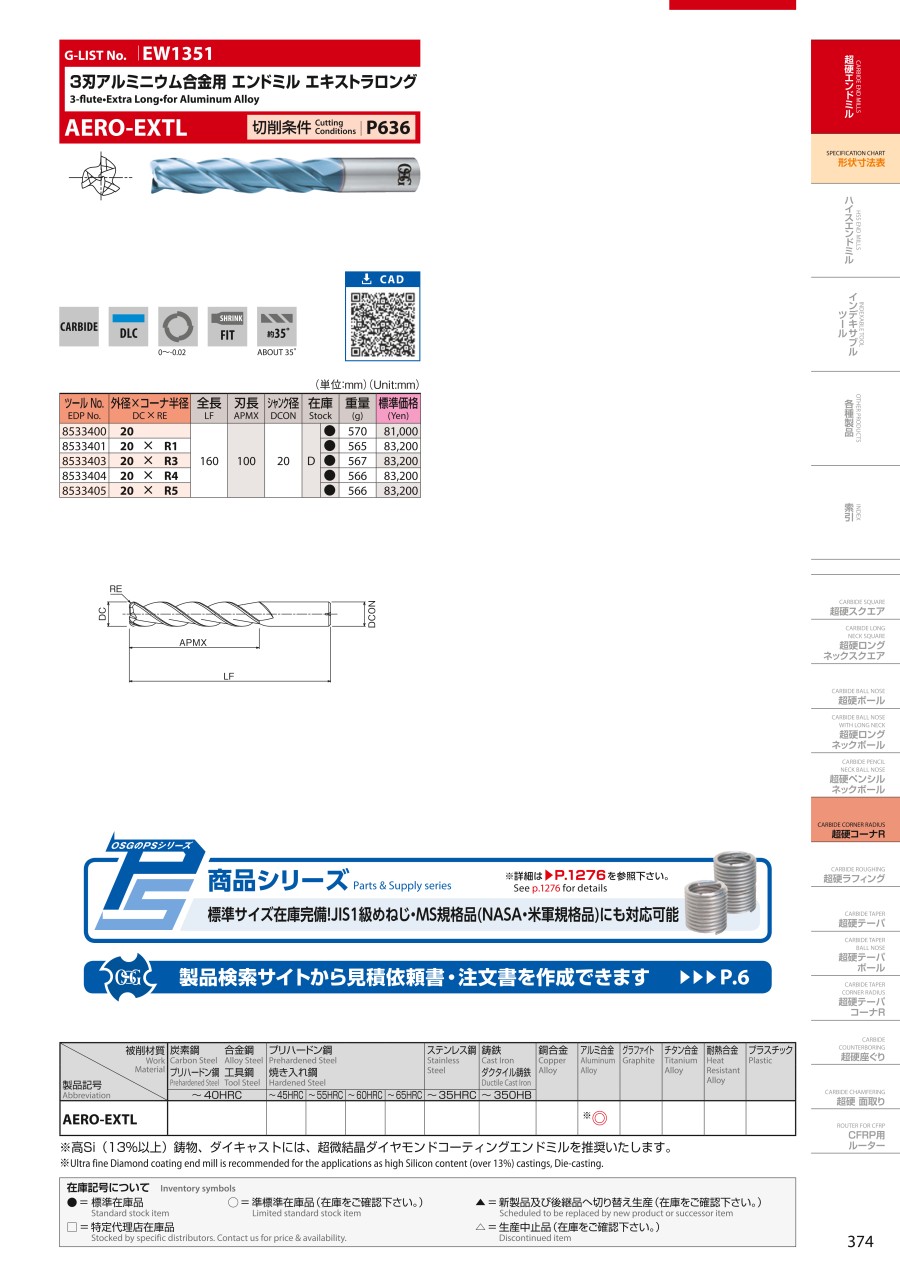

3-Flute Extra-Long End Mill For Aluminum Alloys AERO-EXTL
[Features]
· Maximizes the performance of high-power output machinery.
· Ideal for high-efficiency machining of the large-type aluminum parts used in aircraft.
· The sharp edges provide excellent cutting performance. (Thin film thickness of 1 μm)
· Maximizes the performance of high-power output machinery.
· Ideal for high-efficiency machining of the large-type aluminum parts used in aircraft.
· The sharp edges provide excellent cutting performance. (Thin film thickness of 1 μm)
(i)Remark
- It is recommend to use an ultrafine crystal diamond-coated end mill for high Si (13% or higher) castings and diecast materials.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| AERO-EXTL-20 |
| AERO-EXTL-20XR1 |
| AERO-EXTL-20XR3 |
| AERO-EXTL-20XR4 |
| AERO-EXTL-20XR5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Corner Radius (mm) | Tool No. | |
|---|---|---|---|---|---|---|
416.54 € | 1 | 6 Days | - | 8533400 | ||
694.60 € | 1 | 6 Days | 1 | 8533401 | ||
694.60 € | 1 | 6 Days | 3 | 8533403 | ||
694.60 € | 1 | 6 Days | 4 | 8533404 | ||
694.60 € | 1 | 6 Days | 5 | 8533405 |
Loading...
Basic information
| Blade diameter (D)(φ) | 20 | work material | Aluminum | Blade length (ℓ)(mm) | 100 |
|---|---|---|---|---|---|
| Type | Square | Coating | DLC | Shank diameter (d)(mm) | 20 |
| Overall Length (L)(mm) | 160 | Torsion Angle (θ) | Standard Helix (30 to 40°) | Blade part material | Cemented carbide |
| Blade diameter tolerance(mm) | 0 to -0.02 | Application | Recommended for shrink fitting systems. |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
