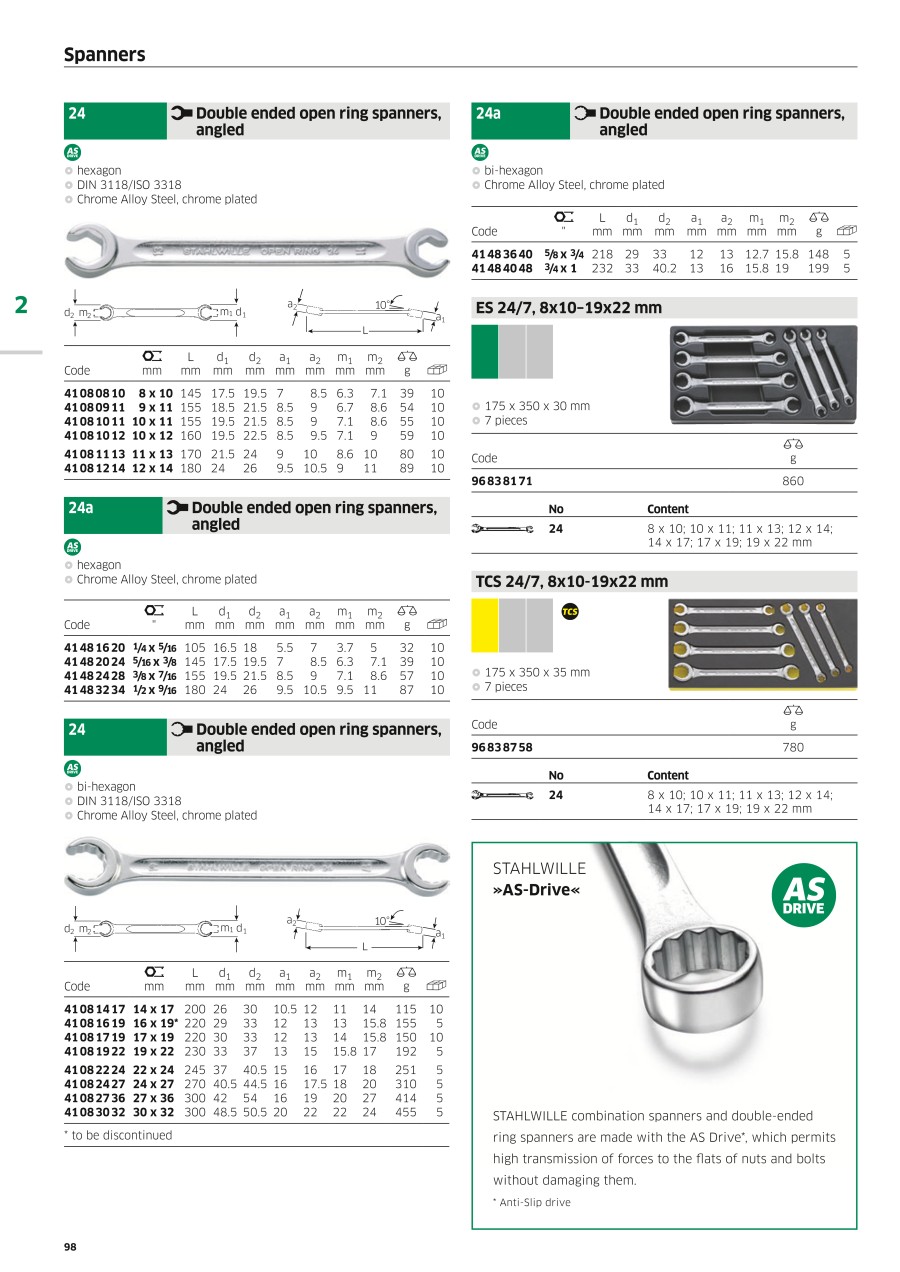

Double-ended open ring spanner
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 41080810 |
| 41081011 |
| 41081012 |
| 41081113 |
| 41081214 |
| 41081417 |
| 41081719 |
| 41082224 |
| 41082427 |
| 41082736 |
| 41083032 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length (mm) | DIN standard | Spanner size (mm) | |
|---|---|---|---|---|---|---|---|
21.40 € | 1 | Available | 3 Days | 145 | DIN ISO 3318 | 8|10 | |
22.47 € | 1 | Available | 3 Days | 155 | DIN ISO 3118 | 10|11 | |
22.47 € | 1 | Available | 3 Days | 160 | DIN ISO 3118 | 10|12 | |
21.40 € | 1 | Available | 3 Days | 170 | DIN ISO 3118 | 11|13 | |
21.40 € | 1 | Available | 3 Days | 180 | DIN ISO 3118 | 12|14 | |
24.60 € | 1 | Available | 3 Days | 200 | DIN ISO 3118 | 14|17 | |
25.68 € | 1 | Available | 3 Days | 220 | DIN ISO 3118 | 17|19 | |
33.37 € | 1 | Available | 3 Days | 245 | DIN ISO 3118 | 22|24 | |
39.83 € | 1 | Available | 3 Days | 270 | DIN ISO 3118 | 24|27 | |
47.84 € | 1 | Available | 11 Days | 300 | DIN ISO 3118 | 27|36 | |
51.12 € | 1 | Available | 3 Days | 300 | DIN ISO 3118 | 30|32 |
Loading...
Basic information
| Material | Chrome steel alloy | Material properties | chrome plated | Product type | Double-ended open ring spanner |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
