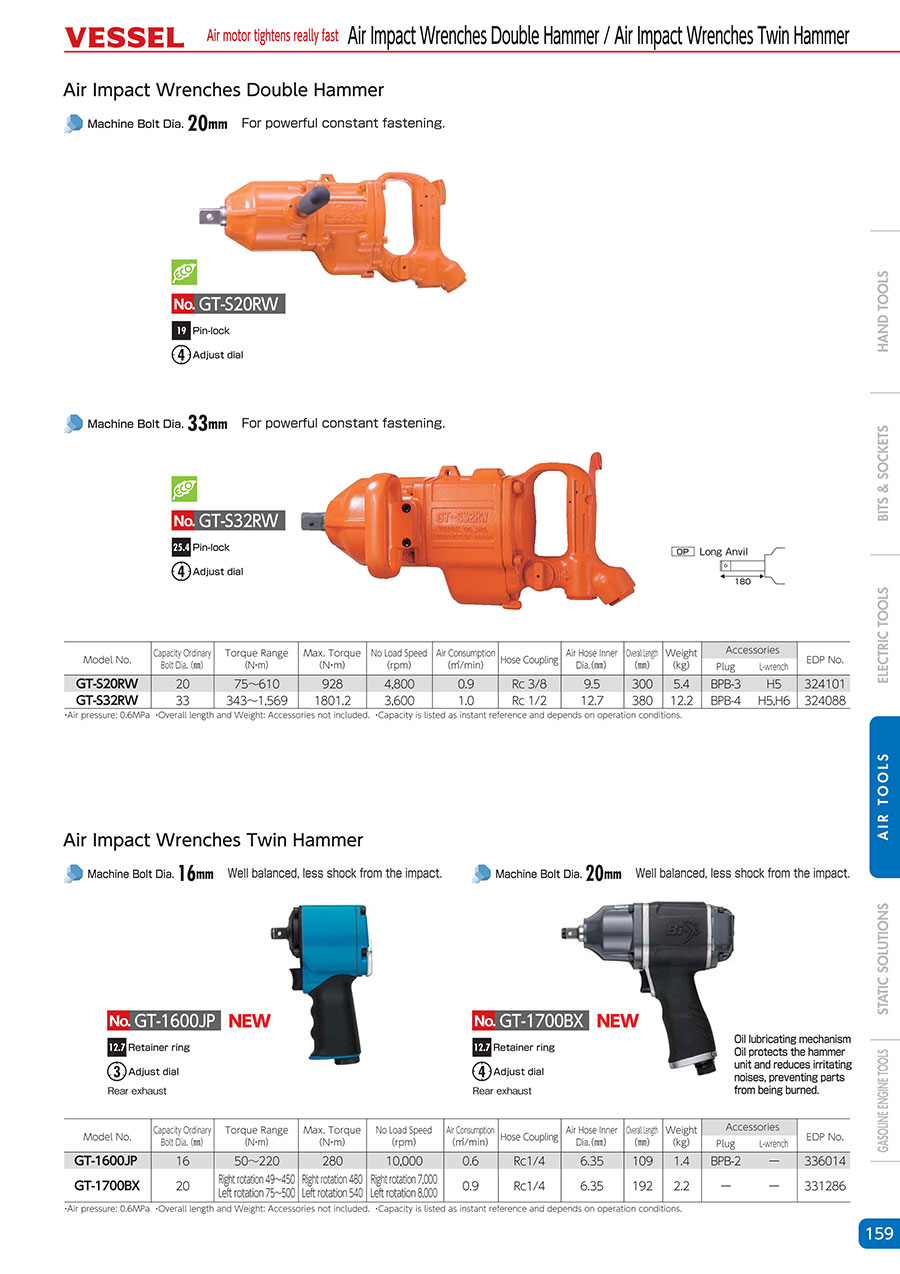

Air Impact Wrenches Twin Hammer
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GT-1600JP |
| GT-1700BX |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Capacity Bolt Diameter (φ/mm) | Air Consumption Amount (m³/min) | Torque Range (N m) | No Load Speed (Rpm) | Adjustment Dial Steps | Set Content | |
|---|---|---|---|---|---|---|---|---|---|---|
188.55 € | 1 | 15 Days | 16 | 0.6 | 50 to 220 | 10000 | 3 | Plug BPB-2 | ||
182.03 € | 1 | 5 Days | 20 | 0.9 | 49 to 450(Right)/75 to 500(Left) | 7000 | 4 | Plug BPB-2 / L-wrench H4 |
Loading...
Basic information
| Tip Tool Mounting Type | Retainer ring | Tip Tool Mounting Size | SQ12.7 | Air Pressure(Mpa) | 0.6 |
|---|---|---|---|---|---|
| Air Hose Inner O/D(mm) | 6.35 | Exhaust | Rear exhaust | Hose fitting | Rc1/4 |
Configure
Basic Attributes
-
Capacity Bolt Diameter(φ/mm)
-
Air Consumption Amount(m³/min)
-
Torque Range(N m)
-
No Load Speed(Rpm)
-
Adjustment Dial Steps
- 3
- 4
-
Type
Filter by standard shipping days
-
- All
- 5 Days or Less
- 15 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
