Check Master

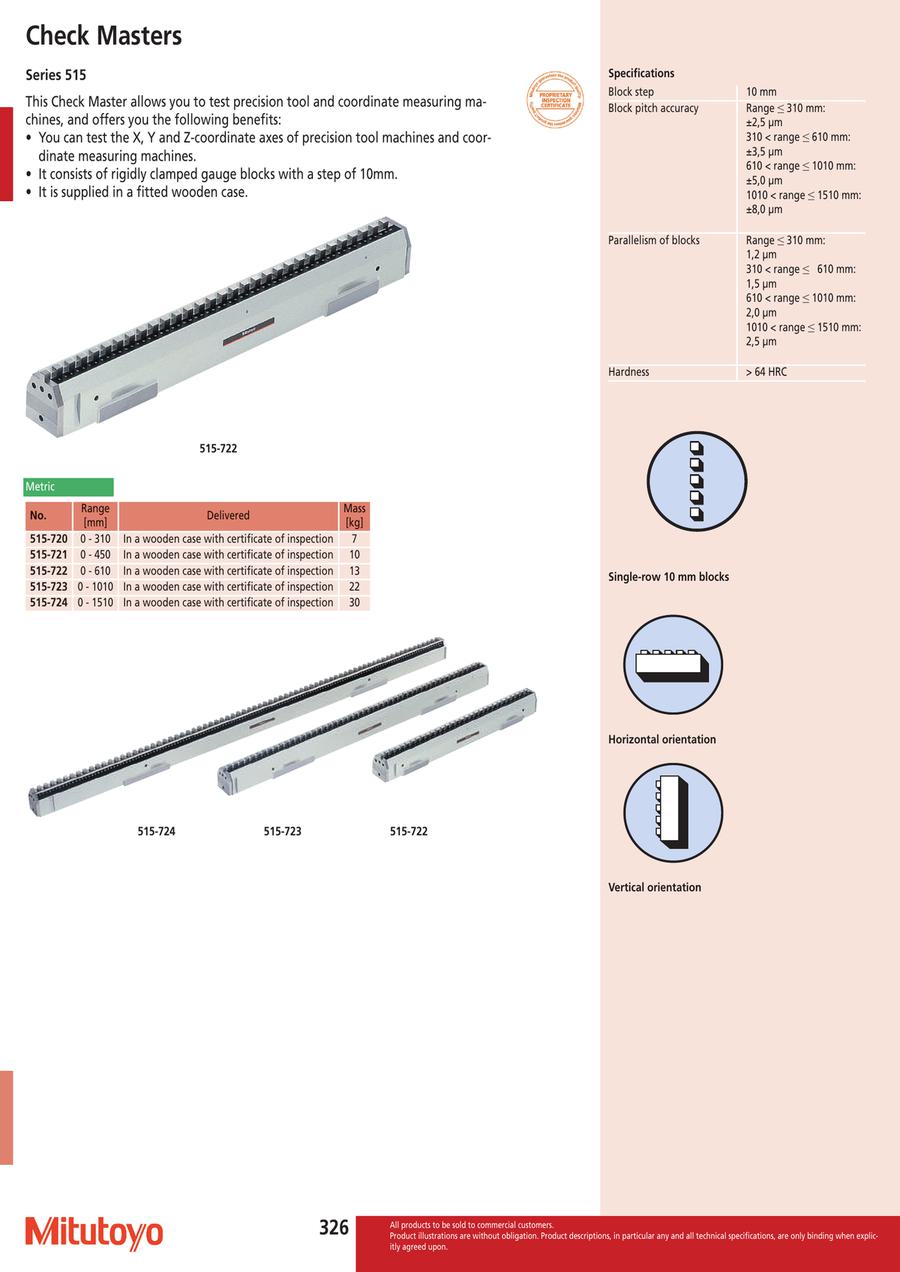

- You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines.
- It consists of rigidly clamped gauge blocks with a step of 10 mm.
- It is supplied in a fitted wooden case.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 515-720 |
| 515-721 |
| 515-722 |
| 515-723 |
| 515-724 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Block Pitch Accuracy | Block Step (mm) | Mass (kg) | Parallelism of Blocks | Range (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
3,388.16 € | 1 | 60 Days | Range ≤ 310 mm: ±2.5 µm 310 < range ≤ 610 mm: ±3.5 µm610 < range ≤ 1010 mm: ±5.0 µm1010 < range ≤ 1510 mm: ±8.0 µm | 10 | 7 | Range ≤ 310 mm:1.2 µm 310 < range ≤ 610 mm:1.5 µm610 < range ≤ 1010 mm:2.0 µm1010 < range ≤ 1510 mm:2.5 µm | 0 - 310 | |||
3,569.74 € | 1 | 60 Days | Range ≤ 310 mm: ±2.5 µm 310 < range ≤ 610 mm: ±3.5 µm610 < range ≤ 1010 mm: ±5.0 µm1010 < range ≤ 1510 mm: ±8.0 µm | 10 | 10 | Range ≤ 310 mm:1.2 µm 310 < range ≤ 610 mm:1.5 µm610 < range ≤ 1010 mm:2.0 µm1010 < range ≤ 1510 mm:2.5 µm | 0 - 450 | |||
4,178.95 € | 1 | 60 Days | Range ≤ 310 mm: ±2.5 µm 310 < range ≤ 610 mm: ±3.5 µm610 < range ≤ 1010 mm: ±5.0 µm1010 < range ≤ 1510 mm: ±8.0 µm | 10 | 13 | Range ≤ 310 mm:1.2 µm 310 < range ≤ 610 mm:1.5 µm610 < range ≤ 1010 mm:2.0 µm1010 < range ≤ 1510 mm:2.5 µm | 0 - 610 | |||
9,027.63 € | 1 | 60 Days | Range ≤ 310 mm: ±2.5 µm 310 < range ≤ 610 mm: ±3.5 µm610 < range ≤ 1010 mm: ±5.0 µm1010 < range ≤ 1510 mm: ±8.0 µm | 10 | 22 | Range ≤ 310 mm:1.2 µm 310 < range ≤ 610 mm:1.5 µm610 < range ≤ 1010 mm:2.0 µm1010 < range ≤ 1510 mm:2.5 µm | 0 - 1,010 | |||
15,135.53 € | 1 | 60 Days | Range ≤ 310 mm: ±2,5 µm 310 < range ≤ 610 mm: ±3,5 µm610 < range ≤ 1010 mm: ±5,0 µm1010 < range ≤ 1510 mm: ±8,0 µm | 10 straight | 30 | Range ≤ 310 mm: 1.2 µm 310 < range ≤ 610 mm: 1.5 µm610 < range ≤ 1010 mm: 2.0 µm1010 < range ≤ 1510 mm: 2.5 µm | 0 - 1,510 |
