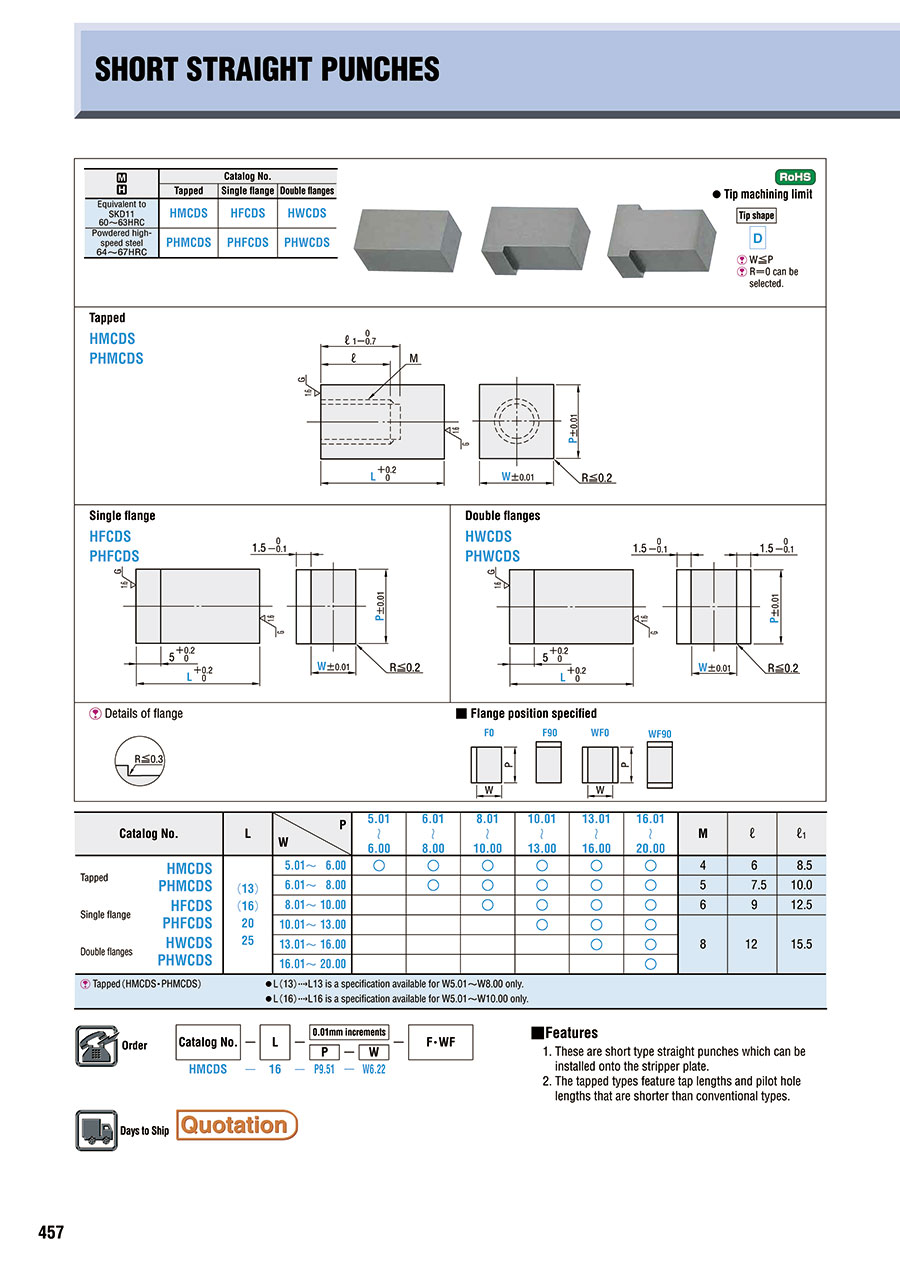

Block cutting punches / short

Block cutting punches / short

Click on this image to zoom in.

Click on this image to zoom in.

  • Block cutting punches / short
  • Block cutting punches / short
  • Block cutting punches / short
  • Block cutting punches / short

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
HFCDS-[13,​16,​20,​25]-P[5.01-20/0.01]-W[5.01-20/0.01]-F[0,​90]
HFCDS-LC[13-24.9/0.1]-P[5.01-20/0.01]-W[5.01-20/0.01]-F[0,​90]
HMCDS-[13,​16,​20,​25]-P[5-20/0.01]-W[5-20/0.01]
HMCDS-LC[13-24.9/0.1]-P[5-20/0.01]-W[5-20/0.01]
HWCDS-[13,​16,​20,​25]-P[5-20/0.01]-W[5-20/0.01]-WF[0,​90]
HWCDS-LC[13-24.9/0.1]-P[5-20/0.01]-W[5-20/0.01]-WF[0,​90]
PHFCDS-[13,​16,​20,​25]-P[5-20/0.01]-W[5-20/0.01]-F[0,​90]
PHFCDS-LC[13-24.9/0.1]-P[5-20/0.01]-W[5-20/0.01]-F[0,​90]
PHMCDS-[13,​16,​20,​25]-P[5-20/0.01]-W[5-20/0.01]
PHMCDS-LC[13-24.9/0.1]-P[5-20/0.01]-W[5-20/0.01]
PHWCDS-[13,​16,​20,​25]-P[5-20/0.01]-W[5-20/0.01]-WF[0,​90]
PHWCDS-LC[13-24.9/0.1]-P[5-20/0.01]-W[5-20/0.01]-WF[0,​90]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMaterial Shank (mounting part) shape F (Flange position designation)
(°)
L (L dimension)
(mm)
LC (Full length alteration)
(mm)
P (Tip dimension)
(mm)
W (Tip dimension)
(mm)
WF (Flange position designation)
(°)
1 Quote 10SKD11 EquivalentSingle-flanged0 ~ 9013 ~ 25-5.01 ~ 205.01 ~ 20-
1 Quote 10SKD11 EquivalentSingle-flanged0 ~ 90-13 ~ 24.95.01 ~ 205.01 ~ 20-
1 Quote 10SKD11 EquivalentTapped-13 ~ 25-5 ~ 205 ~ 20-
1 Quote 10SKD11 EquivalentTapped--13 ~ 24.95 ~ 205 ~ 20-
1 Quote 10SKD11 EquivalentDouble-flanged-13 ~ 25-5 ~ 205 ~ 200 ~ 90
1 Quote 10SKD11 EquivalentDouble-flanged--13 ~ 24.95 ~ 205 ~ 200 ~ 90
1 Quote 10Powdered high-speed steelSingle-flanged0 ~ 9013 ~ 25-5 ~ 205 ~ 20-
1 Quote 10Powdered high-speed steelSingle-flanged0 ~ 90-13 ~ 24.95 ~ 205 ~ 20-
1 Quote 10Powdered high-speed steelTapped-13 ~ 25-5 ~ 205 ~ 20-
1 Quote 10Powdered high-speed steelTapped--13 ~ 24.95 ~ 205 ~ 20-
1 Quote 10Powdered high-speed steelDouble-flanged-13 ~ 25-5 ~ 205 ~ 200 ~ 90
1 Quote 10Powdered high-speed steelDouble-flanged--13 ~ 24.95 ~ 205 ~ 200 ~ 90

Loading...

  1. 1

Basic information

Shank type Straight With/without jector W/O Tip shape D
Surface treatment None
