Fluoro Rubber Sheets/Standard A/B Dimensions

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

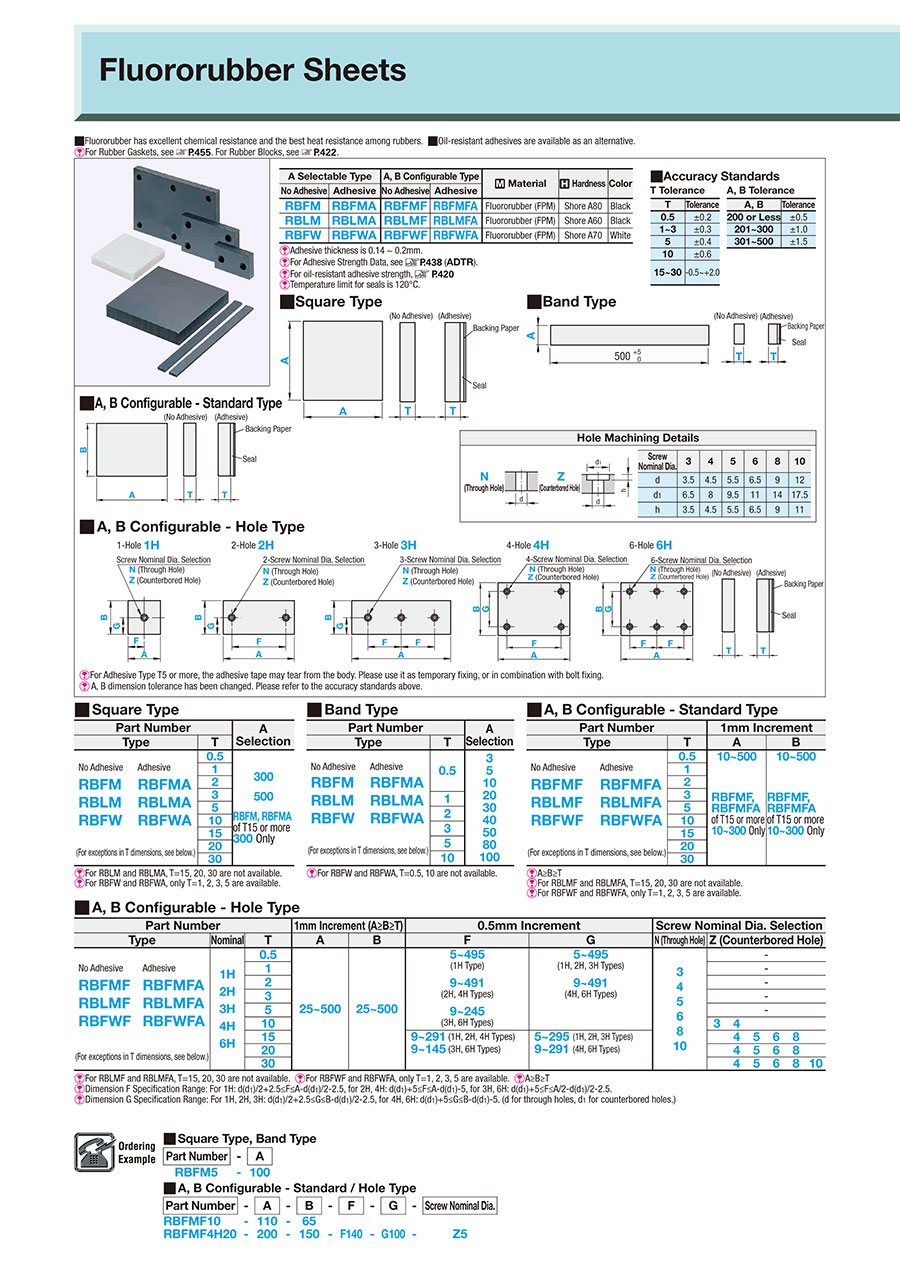

Fluoro Rubber Sheets/Standard A/B Dimensions:Related Image

A Selectable TypeA, B Configurable Type Material HardnessColor
No AdhesiveAdhesiveNo AdhesiveAdhesive
RBFMRBFMARBFMFRBFMFAFluororubber (FPM)Shore A80Black
RBLMRBLMARBLMFRBLMFAFluororubber (FPM)Shore A60Black
RBFWRBFWARBFWFRBFWFAFluororubber (FPM)Shore A70White
Adhesive thickness is 0.14 ~ 0.2mm.
For Adhesive Strength Data, see Here (ADTR).
For oil-resistant adhesive strength, Here
Temperature limit for seals is 80°C.

■Accuracy Standards
T Tolerance
TTolerance
0.5±0.2
1~3±0.3
5±0.4
10±0.6
15~30-0.5~+2.0

A, B Tolerance
A, BTolerance
200 or Less±0.5
201~300±1.0
301~500±1.5

Specifications

■ Square Type, Band Type
Part Number-A
RBFM5 -100
■ A, B Configurable - Standard / Hole Type
Part Number-A-B-F-G-Screw Nominal Dia.
RBFMF10 -110-65
RBFMF4H20-200-150-F140-G100-Z5
■ Square Type
Part NumberA Selection
TypeT
No Adhesive
RBFM
RBLM
RBFW
Adhesive
RBFMA
RBLMA
RBFWA
0.5300

500

RBFM, RBFMA
of T15 or more
300 Only
1
2
3
5
10
15
(For exceptions in T dimensions, see below.)20
30
For RBLM and RBLMA, T=15, 20, 30 are not available.
For RBFW and RBFWA, only T=1, 2, 3, 5 are available.

■ Band Type
Part NumberA Selection
TypeT
No Adhesive
RBFM
RBLM
RBFW
Adhesive
RBFMA
RBLMA
RBFWA
0.53
5
10
20
30
40
50
80
100
1
2
3
(For exceptions in T dimensions, see below.)5
10
For RBFW and RBFWA, T=0.5, 10 are not available.

■ A, B Configurable - Standard Type
Part Number1mm Increment
TypeTAB
No Adhesive
RBFMF
RBLMF
RBFWF
Adhesive
RBFMFA
RBLMFA
RBFWFA
0.510~500
RBFMF,
RBFMFA
of T15 or more
10~300 Only
10~500
RBFMF,
RBFMFA
of T15 or more
10~300 Only
1
2
3
5
10
15
(For exceptions in T dimensions, see below.)20
30
A≥B≥T
For RBLMF and RBLMFA, T=15, 20, 30 are not available.
For RBFWF and RBFWFA, only T=1, 2, 3, 5 are available.

■ A, B Configurable - Hole Type
Part Number1mm Increment (A≥B≥T)0.5mm IncrementScrew Nominal Dia. Selection
TypeNominalTABFGN (Through Hole)Z (Counterbored Hole)
No Adhesive
RBFMF
RBLMF
RBFWF
Adhesive
RBFMFA
RBLMFA
RBFWFA
1H
2H
3H
4H
6H
0.525~50025~5005~495
(1H Type)
9~491
(2H, 4H Types)
9~245
(3H, 6H Types)
5~495
(1H, 2H, 3H Types)
9~491
(4H, 6H Types)
3
4
5
6
8
10
-
1-
2-
3-
5-
1034
159~291 (1H, 2H, 4H Types)
9~145 (3H, 6H Types)
5~295 (1H, 2H, 3H Types)
9~291 (4H, 6H Types)
4568
(For exceptions in T dimensions, see below.)204568
30456810
For RBLMF and RBLMFA, T=15, 20, 30 are not available. For RBFWF and RBFWFA, only T=1, 2, 3, 5 are available. A≥B≥T
Dimension F Specification Range: For 1H: d(d1)/2+2.5≤F≤A-d(d1)/2-2.5, for 2H, 4H: d(d1)+5≤F≤A-d(d1)-5, for 3H, 6H: d(d1)+5≤F≤A/2-d(d1)/2-2.5.
Dimension G Specification Range: For 1H, 2H, 3H: d(d1)/2+2.5≤G≤B-d(d1)/2-2.5, for 4H, 6H: d(d1)+5≤G≤B-d(d1)-5. (d for through holes, d1 for counterbored holes.)

Alterations

Fluoro Rubber Sheets/Standard A/B Dimensions:Related Image

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
RBFM0.5-3
RBFM0.5-5
RBFM0.5-10
RBFM0.5-20
RBFM0.5-30
RBFM0.5-40
RBFM0.5-50
RBFM0.5-80
RBFM0.5-100
RBFM0.5-300
RBFM0.5-500
RBFM1-3
RBFM1-5
RBFM1-10
RBFM1-20
RBFM1-30
RBFM1-40
RBFM1-50
RBFM1-80
RBFM1-100
RBFM1-300
RBFM1-500
RBFM2-3
RBFM2-5
RBFM2-10
RBFM2-20
RBFM2-30
RBFM2-40
RBFM2-50
RBFM2-80
RBFM2-100
RBFM2-300
RBFM2-500
RBFM3-3
RBFM3-5
RBFM3-10
RBFM3-20
RBFM3-30
RBFM3-40
RBFM3-50
RBFM3-80
RBFM3-100
RBFM3-300
RBFM3-500
RBFM5-3
RBFM5-5
RBFM5-10
RBFM5-20
RBFM5-30
RBFM5-40
RBFM5-50
RBFM5-80
RBFM5-100
RBFM5-300
RBFM5-500
RBFM10-3
RBFM10-5
RBFM10-10
RBFM10-20
RBFM10-30
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSWith or w/o Adhesive Thickness T
(mm)
Width A
(mm)
Length B
(mm)
Hardness (Shore, Asker, Penetration) Specifications Hole Machining Counterbored Hole Nominal Dia. [Z] F
(mm)
G
(mm)
Through Hole Nominal Dia. [N]

2.20 €

Available 4 Days 10No Adhesive0.53500Shore A80A Selectable / BandNo Drilling Alteration----

2.60 €

Available 4 Days 10No Adhesive0.55500Shore A80A Selectable / BandNo Drilling Alteration----

3.80 €

Available 4 Days 10No Adhesive0.510500Shore A80A Selectable / BandNo Drilling Alteration----

5.80 €

Available 4 Days 10No Adhesive0.520500Shore A80A Selectable / BandNo Drilling Alteration----

8.00 €

Available 4 Days 10No Adhesive0.530500Shore A80A Selectable / BandNo Drilling Alteration----

9.90 €

Available 5 Days 10No Adhesive0.540500Shore A80A Selectable / BandNo Drilling Alteration----

11.40 €

Available 4 Days 10No Adhesive0.550500Shore A80A Selectable / BandNo Drilling Alteration----

17.50 €

Available 4 Days 10No Adhesive0.580500Shore A80A Selectable / BandNo Drilling Alteration----

21.50 €

Available 4 Days 10No Adhesive0.5100500Shore A80A Selectable / BandNo Drilling Alteration----

28.50 €

Available 4 Days 10No Adhesive0.5300300Shore A80A Selectable / SquareNo Drilling Alteration----

78.50 €

Available 4 Days 10No Adhesive0.5500500Shore A80A Selectable / SquareNo Drilling Alteration----

2.20 €

Available 4 Days 10No Adhesive13500Shore A80A Selectable / BandNo Drilling Alteration----

2.60 €

Available 4 Days 10No Adhesive15500Shore A80A Selectable / BandNo Drilling Alteration----

3.80 €

Available 4 Days 10No Adhesive110500Shore A80A Selectable / BandNo Drilling Alteration----

5.80 €

Available 4 Days 10No Adhesive120500Shore A80A Selectable / BandNo Drilling Alteration----

8.00 €

Available 4 Days 10No Adhesive130500Shore A80A Selectable / BandNo Drilling Alteration----

9.90 €

Available 4 Days 10No Adhesive140500Shore A80A Selectable / BandNo Drilling Alteration----

11.40 €

Available 4 Days 10No Adhesive150500Shore A80A Selectable / BandNo Drilling Alteration----

17.50 €

Available 4 Days 10No Adhesive180500Shore A80A Selectable / BandNo Drilling Alteration----

21.50 €

Available 4 Days 10No Adhesive1100500Shore A80A Selectable / BandNo Drilling Alteration----

31.80 €

Available 4 Days 10No Adhesive1300300Shore A80A Selectable / SquareNo Drilling Alteration----

85.20 €

Available 4 Days 10No Adhesive1500500Shore A80A Selectable / SquareNo Drilling Alteration----

2.90 €

Available 4 Days 10No Adhesive23500Shore A80A Selectable / BandNo Drilling Alteration----

3.80 €

Available 4 Days 10No Adhesive25500Shore A80A Selectable / BandNo Drilling Alteration----

5.80 €

Available 4 Days 10No Adhesive210500Shore A80A Selectable / BandNo Drilling Alteration----

9.90 €

Available 4 Days 10No Adhesive220500Shore A80A Selectable / BandNo Drilling Alteration----

14.30 €

Available 4 Days 10No Adhesive230500Shore A80A Selectable / BandNo Drilling Alteration----

18.50 €

Available 4 Days 10No Adhesive240500Shore A80A Selectable / BandNo Drilling Alteration----

21.50 €

Available 4 Days 10No Adhesive250500Shore A80A Selectable / BandNo Drilling Alteration----

33.50 €

Available 4 Days 10No Adhesive280500Shore A80A Selectable / BandNo Drilling Alteration----

41.60 €

Available 4 Days 10No Adhesive2100500Shore A80A Selectable / BandNo Drilling Alteration----

62.30 €

Available 4 Days 10No Adhesive2300300Shore A80A Selectable / SquareNo Drilling Alteration----

169.00 €

Available 4 Days 10No Adhesive2500500Shore A80A Selectable / SquareNo Drilling Alteration----

3.40 €

Available 4 Days 10No Adhesive33500Shore A80A Selectable / BandNo Drilling Alteration----

4.60 €

Available 4 Days 10No Adhesive35500Shore A80A Selectable / BandNo Drilling Alteration----

7.50 €

Available 4 Days 10No Adhesive310500Shore A80A Selectable / BandNo Drilling Alteration----

13.40 €

Available 4 Days 10No Adhesive320500Shore A80A Selectable / BandNo Drilling Alteration----

19.70 €

Available 4 Days 10No Adhesive330500Shore A80A Selectable / BandNo Drilling Alteration----

25.40 €

Available 4 Days 10No Adhesive340500Shore A80A Selectable / BandNo Drilling Alteration----

29.90 €

Available 4 Days 10No Adhesive350500Shore A80A Selectable / BandNo Drilling Alteration----

46.90 €

Available 5 Days 10No Adhesive380500Shore A80A Selectable / BandNo Drilling Alteration----

58.40 €

Available 4 Days 10No Adhesive3100500Shore A80A Selectable / BandNo Drilling Alteration----

92.70 €

Available 4 Days 10No Adhesive3300300Shore A80A Selectable / SquareNo Drilling Alteration----

252.80 €

Available 4 Days 10No Adhesive3500500Shore A80A Selectable / SquareNo Drilling Alteration----

3.60 €

Available 4 Days 10No Adhesive53500Shore A80A Selectable / BandNo Drilling Alteration----

5.30 €

Available 4 Days 10No Adhesive55500Shore A80A Selectable / BandNo Drilling Alteration----

9.00 €

Available 4 Days 10No Adhesive510500Shore A80A Selectable / BandNo Drilling Alteration----

17.00 €

Available 4 Days 10No Adhesive520500Shore A80A Selectable / BandNo Drilling Alteration----

25.10 €

Available 4 Days 10No Adhesive530500Shore A80A Selectable / BandNo Drilling Alteration----

32.80 €

Available 4 Days 10No Adhesive540500Shore A80A Selectable / BandNo Drilling Alteration----

38.00 €

Available 4 Days 10No Adhesive550500Shore A80A Selectable / BandNo Drilling Alteration----

60.20 €

Available 4 Days 10No Adhesive580500Shore A80A Selectable / BandNo Drilling Alteration----

75.00 €

Available 5 Days 10No Adhesive5100500Shore A80A Selectable / BandNo Drilling Alteration----

123.00 €

Available 4 Days 10No Adhesive5300300Shore A80A Selectable / SquareNo Drilling Alteration----

336.30 €

Available 4 Days 10No Adhesive5500500Shore A80A Selectable / SquareNo Drilling Alteration----

6.10 €

Available 5 Days 10No Adhesive103500Shore A80A Selectable / BandNo Drilling Alteration----

9.50 €

Available 5 Days 10No Adhesive105500Shore A80A Selectable / BandNo Drilling Alteration----

17.80 €

Available 4 Days 10No Adhesive1010500Shore A80A Selectable / BandNo Drilling Alteration----

34.40 €

Available 4 Days 10No Adhesive1020500Shore A80A Selectable / BandNo Drilling Alteration----

51.40 €

Available 4 Days 10No Adhesive1030500Shore A80A Selectable / BandNo Drilling Alteration----

Loading...

Basic information

Material Rubber Grade, Type Fluorine (FPM)
