Single Axis Actuators LX45 / Motor Folded Type

Single Axis Actuators LX45 / Motor Folded Type
[Specifications]
・Slider Material: Chrome Molybdenum Steel
・The shaft diameter of a ball screw(φ): 15
・Lead (mm): 10, 20
・Accuracy: High Grade
・Motor Mounting Posture: Fold Back
・Driving mode: Ground Ball Screw

Single Axis Actuators LX45 Motor Folded Type.
  • Order quantities extended (D-JIT)

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

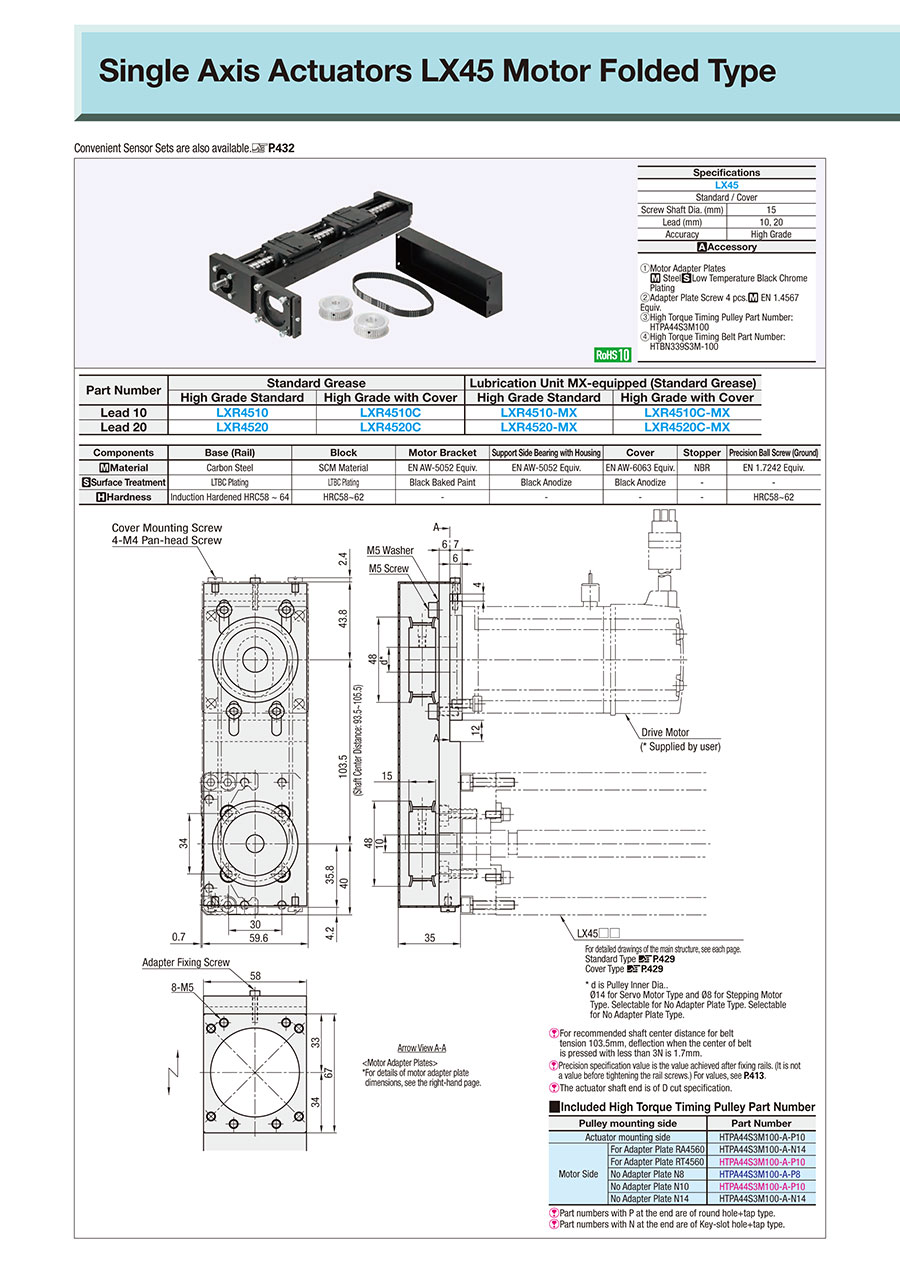

Single Axis Actuators LX45/Motor Folded Type:Related Image

Specifications
LX45
Standard / Cover
Screw Shaft Dia. (mm) 15
Lead (mm) 10, 20
Accuracy High Grade
Accessory
Motor Adapter Plates
  SteelLow Temperature Black Chrome Plating
Adapter Plate Screw 4 pcs. EN 1.4567 Equiv.
High Torque Timing Pulley Part Number: HTPA44S3M100
High Torque Timing Belt Part Number: HTBN339S3M-100

Components Base (Rail) Block Motor Bracket Support Side Bearing with Housing Cover Stopper Precision Ball Screw (Ground)
Material Carbon Steel SCM Material EN AW-5052 Equiv. EN AW-5052 Equiv. EN AW-6063 Equiv. NBR EN 1.7242 Equiv.
Surface Treatment LTBC Plating LTBC Plating Black Baked Paint Black Anodize Black Anodize - -
Hardness Induction Hardened HRC58 ~ 64 HRC58~62 - - - - HRC58~62

Specifications

Part Number - Block Qty. - Motor Adapter Plates - Base Length (L)
LXR4510
LXR4510C-MX
-
-
B1
B1
-
-
RA4560
RA4560
-
-
540
540

Part Number - Block Qty. - Motor Adapter Plates - Base Length (L) - (NBP)
LXR4510 - B1 - RA4560 - 540 - NBP
Part Number Standard Grease Lubrication Unit MX-equipped (Standard Grease)
High Grade Standard High Grade with Cover High Grade Standard High Grade with Cover
Lead 10 LXR4510 LXR4510C LXR4510-MX LXR4510C-MX
Lead 20 LXR4520 LXR4520C LXR4520-MX LXR4520C-MX

Part Number Block Qty. Motor Adapter Plates Base Length (L) Details of Mounting Hole DimensionsP.429, 430
A P1 P2 B Number of Pitches Number of Holes (N)
(High Grade Standard)
LXR4510
LXR4520

(Lubrication Unit MX Standard)
LXR4510-MX
LXR4520-MX
(High Grade with Cover)
LXR4510C
LXR4520C

(Lubrication Unit MX with Cover)
LXR4510C-MX
LXR4520C-MX
Long Blocks
(1 pc.)B1
(2 pcs.)B2

Short Blocks
(1 pc.)S1
(2 pcs.)S2
*Lubrication Units
MX-equipped types are available in B1/S1 only.
(Servo)
RA4560

(Stepping)
RT4560

*(No Adapter Plate)
N8(Pulley Inner Dia. Ø8)
N10(Pulley Inner Dia. Ø10)
N14(Pulley Inner Dia. Ø14)
340 70 100 100 70 2 6
390 50 3 8
440 100
490 50 4 10
540 100
590 50 5 12
* Motor adapter plate and mounting screws are not included with No Adapter Plate Type.
■Effective Stroke / Mass
Base Length (L) * Effective Stroke Total Mass (kg)
MX-unequipped MX-equipped LXR45□□ LXR45□□C
B1 B2 S1 S2 B1 S1 B1 B2 S1 S2 B1 B2 S1 S2
340 210.4 88.8 247.9 163.8 194.4 231.9 6.42 7.34 6.02 6.56 7.24 8.74 6.59 7.43
390 260.4 138.8 297.9 213.8 244.4 281.9 7.02 7.94 6.63 7.16 7.88 9.38 7.22 8.06
440 310.4 188.8 347.9 263.8 294.4 331.9 7.62 8.55 7.23 7.76 8.51 10.01 7.85 8.69
490 360.4 238.8 397.9 313.8 344.4 381.9 8.22 9.15 7.83 8.36 9.14 10.64 8.49 9.33
540 410.4 288.8 447.9 363.8 394.4 431.9 8.83 9.75 8.43 8.96 9.78 11.28 9.12 9.96
590 460.4 338.8 497.9 413.8 444.4 481.9 9.43 10.35 9.04 9.57 10.41 11.91 9.75 10.59
* Effective stroke is indicated in dimensions with a margin of 2.5mm each from the ends.
0.024kg will be added to MX-equipped types.
■Accuracy Standards
Accuracy Standards High Grade
Positioning (mm) 0.1
Backlash (mm) 0.02
Positioning Repeatability (mm) ±0.005
Running Parallelism (mm) 0.035
Starting Torque (N • cm) 10
■Static Load Capacity / Allowable Moment
Block Qty. Block Qty. Static Load Capacity (N) Allowable Static Moment (N • m)
Ma Mb Mc
Long
Block
B1 32441 291 291 972
B2 64882 3945 3945 1944
Short
Block
S1 17175 145 145 515
S2 34350 1444 1444 1029
Reference values are for a static state. For life calculation, use our technical calculation software.
For Allowable Static Moment, see P.411.
■Max. Velocity
Max. Velocity (mm/s)
LXR4510 550
LXR4520 1110
The Max. Velocity is reference values derived from ball screw critical speeds and DN values but not guarantee data considering the motor's conditions.
