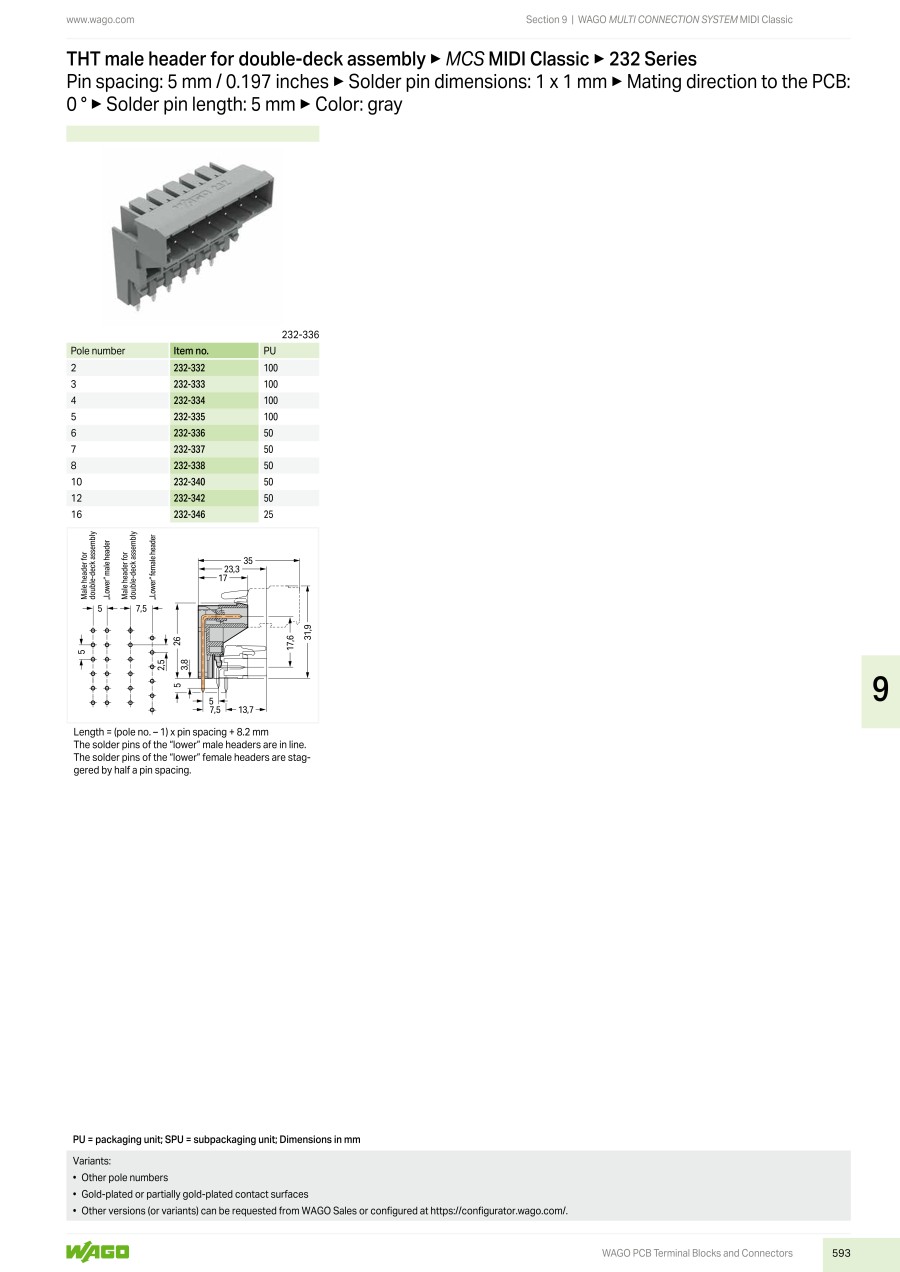

Male headers for double-deck assembly 232【25-100 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 232-332 |
| 232-333 |
| 232-334 |
| 232-335 |
| 232-336 |
| 232-337 |
| 232-338 |
| 232-340 |
| 232-342 |
| 232-346 |
| 232-362 |
| 232-363 |
| 232-364 |
| 232-366 |
| 232-368 |
| 232-372 |
| 232-376 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Number of pins (Pole) | Color | Contact spacing (mm) | Pins per row | Product size (width) (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
169.43 € | 100 Pieces Per Package | 1 pack | Available | 8 Days | 2 | Grey | 5 | 2 | 13.2 | ||
202.21 € | 100 Pieces Per Package | 1 pack | Available | 25 Days | 3 | Grey | 5 | 3 | 18.2 | ||
218.63 € | 100 Pieces Per Package | 1 pack | Available | 7 Days | 4 | Grey | 5 | 4 | 23.2 | ||
251.40 € | 100 Pieces Per Package | 1 pack | Available | 32 Days | 5 | Grey | 5 | 5 | 28.2 | ||
147.05 € | 50 Pieces Per Package | 1 pack | Available | 7 Days | 6 | Grey | 5 | 6 | 33.2 | ||
196.75 € | 50 Pieces Per Package | 1 pack | Available | 33 Days | 7 | Grey | 5 | 7 | 38.2 | ||
213.16 € | 50 Pieces Per Package | 1 pack | Available | 8 Days | 8 | Grey | 5 | 8 | 43.2 | ||
213.16 € | 50 Pieces Per Package | 1 pack | Available | 8 Days | 10 | Grey | 5 | 10 | 53.2 | ||
251.40 € | 50 Pieces Per Package | 1 pack | Available | 8 Days | 12 | Grey | 5 | 12 | 63.2 | ||
180.36 € | 25 Pieces Per Package | 1 pack | Available | 33 Days | 16 | Grey | 5 | 16 | 83.2 | ||
169.43 € | 100 Pieces Per Package | 1 pack | Available | 8 Days | 2 | Orange | 5.08 | 2 | 13.36 | ||
202.21 € | 100 Pieces Per Package | 1 pack | Available | 26 Days | 3 | Orange | 5.08 | 3 | 18.44 | ||
218.63 € | 100 Pieces Per Package | 1 pack | Available | 8 Days | 4 | Orange | 5.08 | 4 | 23.52 | ||
174.89 € | 50 Pieces Per Package | 1 pack | Available | 8 Days | 6 | Orange | 5.08 | 6 | 33.68 | ||
213.16 € | 50 Pieces Per Package | 1 pack | Available | 8 Days | 8 | Orange | 5.08 | 8 | 43.84 | ||
245.95 € | 50 Pieces Per Package | 1 pack | Available | 25 Days | 12 | Orange | 5.08 | 12 | 64.16 | ||
180.36 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 16 | Orange | 5.08 | 16 | 84.48 |
Loading...
Basic information
| Max. temperature(°C) | +100 | Min. temperature(°C) | -60 | No. of rows | 1 |
|---|---|---|---|---|---|
| Nominal current(A) | 12 | Nominal voltage(V) | 320 | Product size (height)(mm) | 31 |
| Product size (length)(mm) | 17 | Series (connectors) | 301 | Connection (components) | |
| Connector orientation | Parallel (to the PCB) | Connector type | Plug, right angle | Connectors | wire-to-board |
| Contact material | Cathode copper | Contact surface | Tin plated | Insulation material | Polyamide |
| Pin shape | Square | Pin strip type (category) | Pin strip (standard) | Industrial goods | Yes |
Configure
Basic Attributes
-
Number of pins(Pole)
-
Color
- Grey
- Orange
-
Contact spacing(mm)
-
Pins per row
-
Product size (width)(mm)
Filter by standard shipping days
-
- All
- 7 Days or Less
- 8 Days or Less
- 25 Days or Less
- 26 Days or Less
- 32 Days or Less
- 33 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
