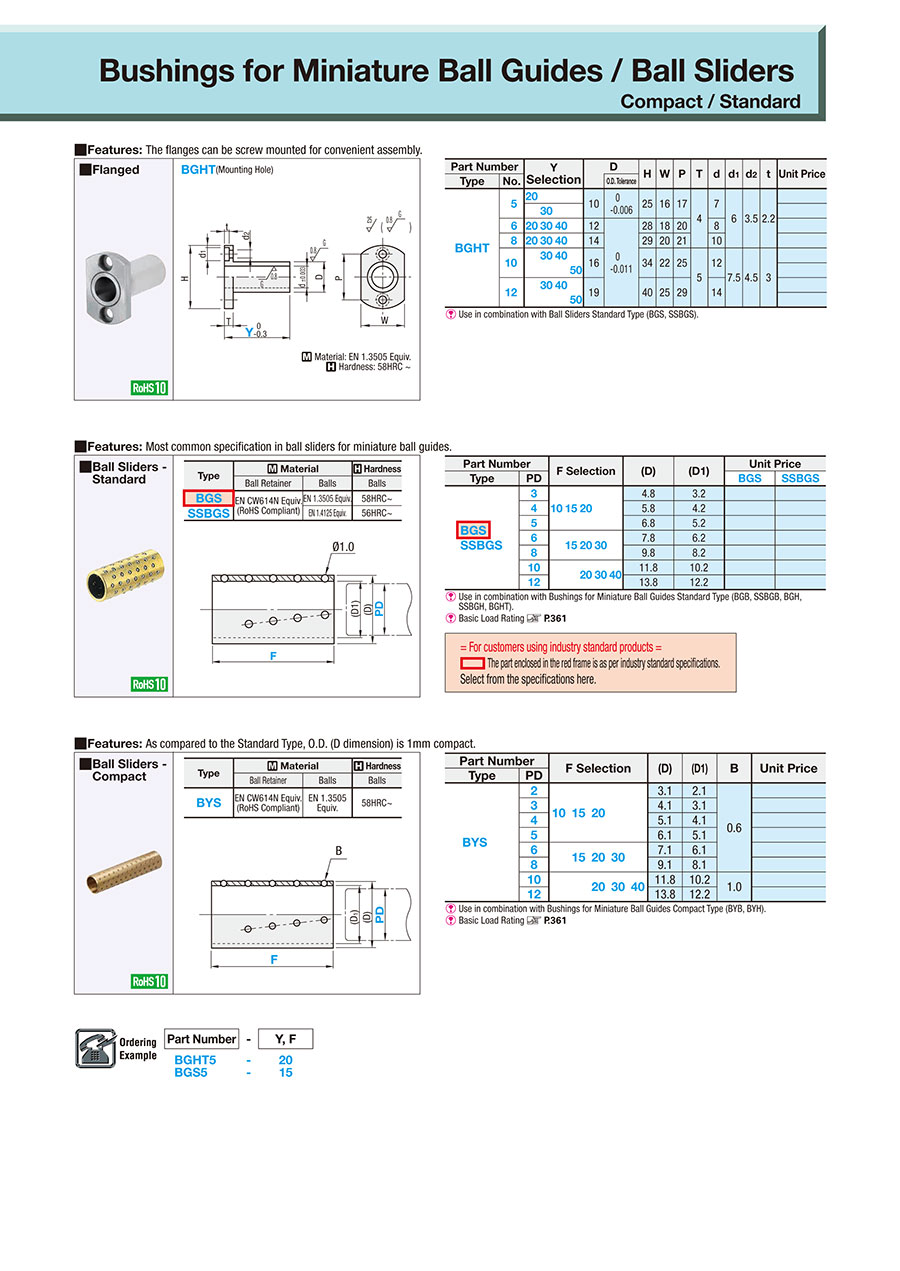

Miniature Ball Bearing Guide / Ball Slider Compact Type
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material | Hardness | |
| Ball Retainer | Balls | Balls | |
| BYS | EN CW614N Equiv. | EN 1.3505 Equiv. | 58HRC~ |
Specifications
| Part Number | - | Y, F |
| BGHT5 BGS5 | - - | 20 15 |
| Part Number | F Selection | (D) | (D1) | B | Unit Price | |||||
| Type | PD | |||||||||
| BYS | 2 | 10 | 15 | 20 | 3.1 | 2.1 | 0.6 | |||
| 3 | 4.1 | 3.1 | ||||||||
| 4 | 5.1 | 4.1 | ||||||||
| 5 | 6.1 | 5.1 | ||||||||
| 6 | 15 | 20 | 30 | 7.1 | 6.1 | |||||
| 8 | 9.1 | 8.1 | ||||||||
| 10 | 20 | 30 | 40 | 11.8 | 10.2 | 1.0 | ||||
| 12 | 13.8 | 12.2 | ||||||||
Basic Load Rating Here
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BYS2-10 |
| BYS2-15 |
| BYS2-20 |
| BYS3-10 |
| BYS3-15 |
| BYS3-20 |
| BYS4-10 |
| BYS4-15 |
| BYS4-20 |
| BYS5-10 |
| BYS5-15 |
| BYS5-20 |
| BYS6-15 |
| BYS6-20 |
| BYS6-30 |
| BYS8-15 |
| BYS8-20 |
| BYS8-30 |
| BYS10-20 |
| BYS10-30 |
| BYS10-40 |
| BYS12-20 |
| BYS12-30 |
| BYS12-40 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | PD Dimension (Ø) | Ball Slider Overall Length F (mm) | |
|---|---|---|---|---|---|---|---|
19.01 € | 1 | Available | 6 Days | 10 | 2 | 10 | |
19.01 € | 1 | Available | 6 Days | 10 | 2 | 15 | |
19.01 € | 1 | Available | 6 Days | 10 | 2 | 20 | |
15.86 € | 1 | Available | 6 Days | 10 | 3 | 10 | |
15.86 € | 1 | Available | 6 Days | 10 | 3 | 15 | |
15.86 € | 1 | Available | 6 Days | 10 | 3 | 20 | |
17.39 € | 1 | Available | 6 Days | 10 | 4 | 10 | |
17.39 € | 1 | Available | 6 Days | 10 | 4 | 15 | |
17.39 € | 1 | Available | 6 Days | 10 | 4 | 20 | |
19.91 € | 1 | Available | 6 Days | 10 | 5 | 10 | |
19.91 € | 1 | Available | 6 Days | 10 | 5 | 15 | |
19.91 € | 1 | Available | 6 Days | 10 | 5 | 20 | |
31.74 € | 1 | Available | 6 Days | 10 | 6 | 15 | |
31.74 € | 1 | Available | 6 Days | 10 | 6 | 20 | |
31.74 € | 1 | Available | 6 Days | 10 | 6 | 30 | |
34.13 € | 1 | Available | 6 Days | 10 | 8 | 15 | |
34.13 € | 1 | Available | 6 Days | 10 | 8 | 20 | |
34.13 € | 1 | Available | 6 Days | 10 | 8 | 30 | |
21.28 € | 1 | Available | 6 Days | 10 | 10 | 20 | |
21.28 € | 1 | Available | 6 Days | 10 | 10 | 30 | |
21.28 € | 1 | Available |
Same day
Stock | 10 | 10 | 40 | |
26.19 € | 1 | Available | 6 Days | 10 | 12 | 20 | |
26.19 € | 1 | Available | 6 Days | 10 | 12 | 30 | |
26.19 € | 1 | Available | 6 Days | 10 | 12 | 40 |
Loading...
Basic information
| Sales Operation | Retainers | Ball Material | EN 1.3505 Equiv. | Ball Retainer Material | EN CW614N Equiv. |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
