Adapter sleeves H2, main dimensions to DIN 5415, taper 1:12

Configure

Inner diameter(mm)
- 17
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 75
- 80
- 85
- 90
- 95
- 100
Outer diameter(mm)
- 32
- 38
- 45
- 52
- 58
- 65
- 70
- 75
- 80
- 85
- 92
- 98
- 105
- 110
- 120
- 125
- 130
- 140
- 145
Width(mm)
- 24
- 26
- 27
- 29
- 31
- 33
- 35
- 37
- 38
- 40
- 43
- 46
- 50
- 52
- 55
- 58
- 60
- 63
Thread G
Sleeve length B1(mm)
- 24
- 26
- 27
- 29
- 31
- 33
- 35
- 37
- 38
- 40
- 41
- 43
- 46
- 50
- 52
- 55
- 58
- 60
- 63
Bore diameter bearing d(mm)
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 75
- 80
- 85
- 90
- 95
- 100
- 105
- 110
Fuse
- MB4
- MB5
- MB6
- MB7
- MB8
- MB9
- MB10
- MB11
- MB12
- MB13
- MB14
- MB15
- MB16
- MB17
- MB18
- MB19
- MB20
- MB21
- MB22
Locknut
- KM4
- KM5
- KM6
- KM7
- KM8
- KM9
- KM10
- KM11
- KM12
- KM13
- KM14
- KM15
- KM16
- KM17
- KM18
- KM19
- KM20
- KM21
- KM22
Width nut and lock B2(mm)
- 7
- 8.25
- 9.25
- 10.25
- 11.25
- 12.25
- 12.5
- 13.5
- 14.5
- 16.75
- 17.75
- 18.75
- 19.75
- 20.75
RoHS Certificate
- Available
REACH Certificate
- Available
Weight/Unit(kg)
- 0.62
Type
- H20
- H21
- H22
Est. shipping days
- All
- Within 3 working days
- Within 4 working days
- Within 5 working days

Adapter sleeves H2, main dimensions to DIN 5415, taper 1:12

Catalog

Part number:

Still undefined. 19 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Inner diameter

(mm)

Outer diameter

(mm)

Width

(mm)

Thread G

Sleeve length B1

(mm)

Bore diameter bearing d

(mm)

Fuse

Locknut

Width nut and lock B2

(mm)

RoHS Certificate

REACH Certificate

Weight/Unit

(kg)

Minimum order quantity

Data sheet	17	32	24	M20x1	24	20	MB4	KM4	7	-	-	-	1 pieces
Data sheet	20	38	26	M25x1,5	26	25	MB5	KM5	8.25	-	-	-	1 pieces
Data sheet	25	45	27	M30x1,5	27	30	MB6	KM6	8.25	-	-	-	1 pieces
Data sheet	30	52	29	M35x1,5	29	35	MB7	KM7	9.25	-	-	-	1 pieces
Data sheet	35	58	31	M40x1,5	31	40	MB8	KM8	10.25	-	-	-	1 pieces
Data sheet	40	65	33	M45x1,5	33	45	MB9	KM9	11.25	-	-	-	1 pieces
Data sheet	45	70	35	M50x1,5	35	50	MB10	KM10	12.25	-	-	-	1 pieces
Data sheet	50	75	37	M55x2	37	55	MB11	KM11	12.5	-	-	-	1 pieces
Data sheet	55	80	38	M60x2	38	60	MB12	KM12	12.5	-	-	-	1 pieces
Data sheet	60	85	40	M65x2	40	65	MB13	KM13	13.5	-	-	-	1 pieces
Data sheet	60	92	60	M70x2	41	70	MB14	KM14	13.5	Available	Available	0.62	1 pieces
Data sheet	65	98	43	M75x2	43	75	MB15	KM15	14.5	-	-	-	1 pieces
Data sheet	70	105	46	M80x2	46	80	MB16	KM16	16.75	-	-	-	1 pieces
Data sheet	75	110	50	M85x2	50	85	MB17	KM17	17.75	-	-	-	1 pieces
Data sheet	80	120	52	M90x2	52	90	MB18	KM18	17.75	-	-	-	1 pieces
Data sheet	85	125	55	M95x2	55	95	MB19	KM19	18.75	-	-	-	1 pieces
Data sheet	90	130	58	M100x2	58	100	MB20	KM20	19.75	-	-	-	1 pieces
Data sheet	95	140	60	M105x2	60	105	MB21	KM21	19.75	-	-	-	1 pieces
Data sheet	100	145	63	M110x2	63	110	MB22	KM22	20.75	-	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

12.68 € ( 15.09 € )	3 working days
10.22 € ( 12.16 € )	3 working days
10.31 € ( 12.27 € )	3 working days
10.91 € ( 12.98 € )	3 working days
11.54 € ( 13.73 € )	3 working days
15.50 € ( 18.45 € )	5 working days
16.60 € ( 19.75 € )	5 working days
16.42 € ( 19.54 € )	3 working days
17.97 € ( 21.38 € )	3 working days
21.20 € ( 25.23 € )	5 working days
30.67 € ( 36.50 € )	4 working days
37.18 € ( 44.24 € )	5 working days
44.65 € ( 53.13 € )	5 working days
50.86 € ( 60.52 € )	5 working days
58.65 € ( 69.79 € )	5 working days
69.97 € ( 83.26 € )	3 working days
67.42 € ( 80.23 € )	3 working days
93.68 € ( 111.48 € )	5 working days
87.28 € ( 103.86 € )	5 working days

Catalog

Products homepage

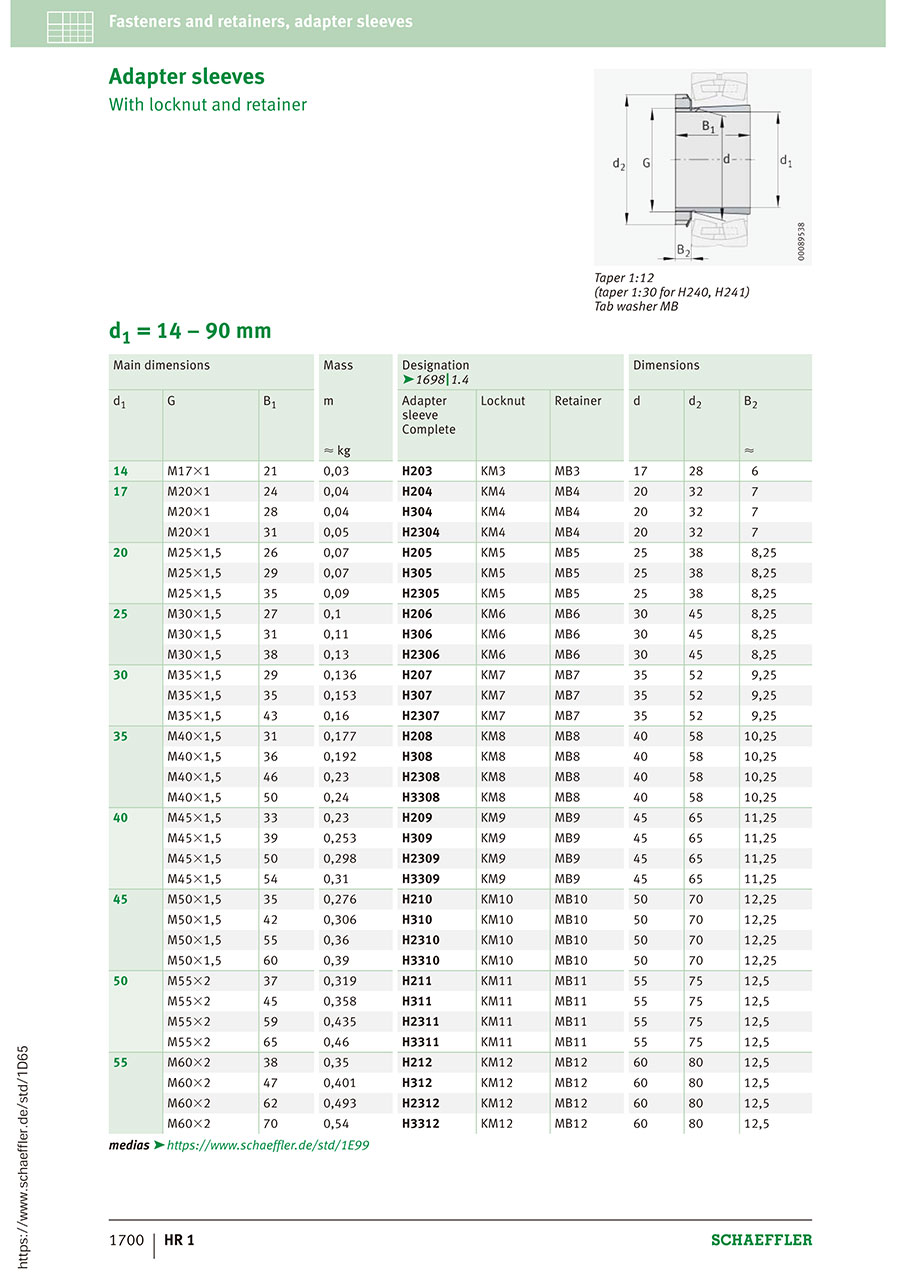

Catalog (2-page spread)
