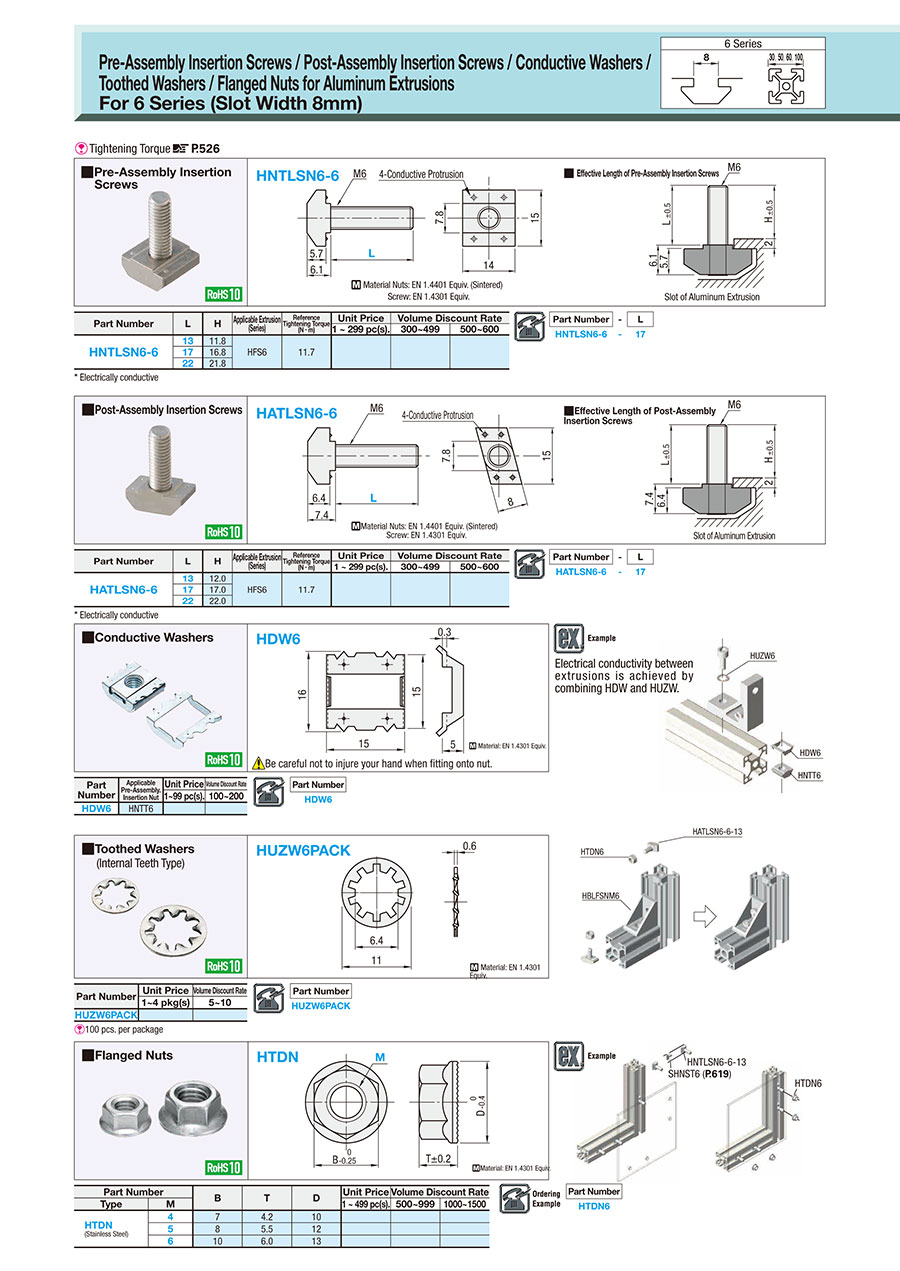

6 Series / Pre-Assembly Insertion Screws
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information
Material Nuts: EN 1.4401 Equiv. (Sintered)
Screw: EN 1.4301 Equiv.
Specifications
| Part Number | - | L |
| HNTLSN6-6 | - | 17 |
| Part Number | L | H | Applicable Extrusion (Series) | Reference Tightening Torque (N • m) | Unit Price | Volume Discount Rate | |
| 1 ~ 299 pc(s). | 300~499 | 500~600 | |||||
| HNTLSN6-6 | 13 | 11.8 | HFS6 | 11.7 | |||
| 17 | 16.8 | ||||||
| 22 | 21.8 | ||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| HNTLSN6-6-13 |
| HNTLSN6-6-17 |
| HNTLSN6-6-22 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread Length L (mm) | |
|---|---|---|---|---|---|---|
2.02 € | 1 | Available | 5 Days | 10 | 13 | |
2.02 € | 1 | Available |
Same day
Stock | 10 | 17 | |
2.02 € | 1 | Available |
Same day
Stock | 10 | 22 |
Loading...
Basic information
| Nut Type | T-Bolt | Series Name | 6 Series | Thread Nominal M(mm) | M6 |
|---|---|---|---|---|---|
| Function | Conductive | Material | Stainless Steel | Loosening Prevention | Not Provided |
| Material | EN 1.4401 Equiv. / Screw: EN 1.4301 Equiv. | Type | HFS |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
