INA Four-Bolt Square Flange Units, Gray Cast Iron, Eccentric Locking Collar, R Seal
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 0008312040000 |
| 0008775060000 |
| 0008776110000 |
| 0096421880000 |
| 0096422340000 |
| 0096422930000 |
| 0096423230000 |
| 0096423580000 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Bore Dia. d (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | B1 (mm) | Housing | d3 max. (mm) | Customs tariff weight (kg) | Center hole distance J (mm) | Unit code | Unit width A (mm) | Unit length L (mm) | A1 (mm) | Bearing code | Protection cap | A2 (mm) | U (mm) | V (mm) | Width/diameter of fixing hole N (mm) | Product code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

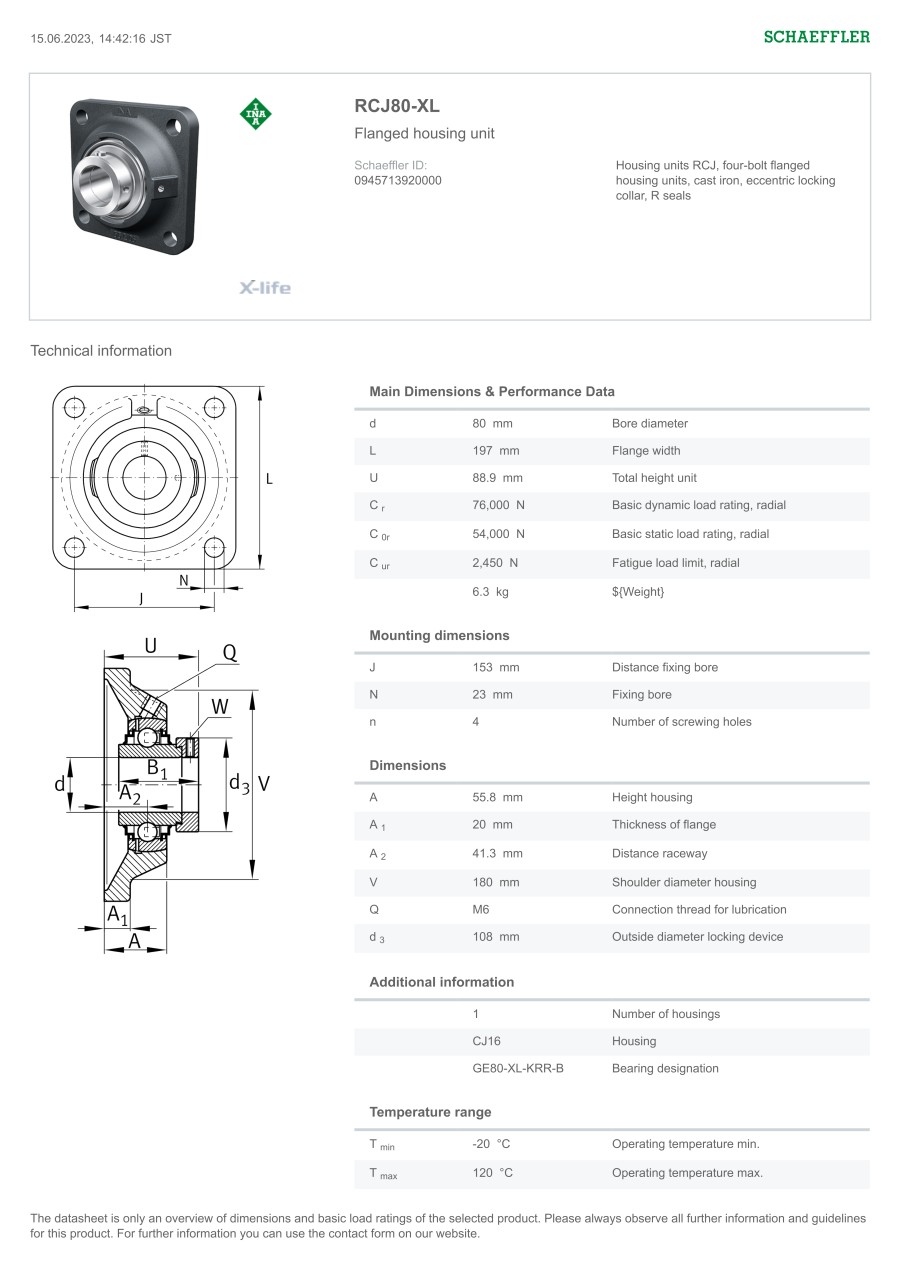

- | 1 | 5 Days | 80 | 72000 | 54000 | 70.7 | CJ16 | 108 | 6.25 | 153 | GG.CJ16-N | 55.8 | 197 | 20 | GE80-KRR-B | - | 41.3 | 88.9 | 180 | 23 | RCJ80-XL | |||
- | 1 | 5 Days | 70 | 62000 | 44000 | 66 | CJ14 | 96 | 5.45 | 150 | GG.CJ14-N | 52 | 188 | 18 | GE70-KRR-B | - | 38 | 82.6 | 165 | 18 | RCJ70-XL | |||
- | 1 | 5 Days | 100 | 122000 | 93000 | 75 | CJ20 | 132 | 12.25 | 210 | GG.CJ20-N | 46 | 265 | 25 | GE100-KRR-B | - | 28 | 77.5 | 230 | 27 | RCJ100-XL | |||
- | 1 | 5 Days | 30 | 19500 | 11300 | 48.5 | CJ06 | 44 | 1.16 | 82.5 | GG.CJ06-N | 29 | 108 | 12 | GE30-KRR-B | KASK06 | 20 | 50.2 | 85 | 11.5 | RCJ30-XL-N | |||
- | 1 | 5 Days | 35 | 25500 | 15300 | 51.3 | CJ07 | 51 | 1.59 | 92 | GG.CJ07-N | 30.5 | 118 | 12.5 | GE35-KRR-B | KASK07 | 21 | 53.5 | 100 | 14 | RCJ35-XL-N | |||
- | 1 | 5 Days | 40 | 32500 | 19800 | 56.5 | CJ08 | 58 | 2.01 | 101.5 | GG.CJ08-N | 34.5 | 130 | 13 | GE40-KRR-B | KASK08 | 24 | 59.1 | 110 | 14 | RCJ40-XL-N | |||
- | 1 | 5 Days | 50 | 35000 | 23200 | 62.8 | CJ10 | 69 | 2.63 | 111 | GG.CJ10-N | 39 | 143 | 13 | GE50-KRR-B | KASK10 | 28 | 66.1 | 125 | 18 | RCJ50-XL-N | |||
- | 1 | 5 Days | 60 | 52000 | 36000 | 77.9 | CJ12 | 84 | 4.21 | 143 | GG.CJ12-N | 46 | 175 | 16 | GE60-KRR-B | KASK12 | 34 | 80.9 | 150 | 18 | RCJ60-XL-N |
Loading...
Basic information
| Bearing Unit, Type | Square Flange Type | Unit Body Material | Cast Iron | Customs tariff goods number | 84832000 |
|---|---|---|---|---|---|
| Method of fixing | Eccentric locking collar | Number of fixing holes | 4 | Customs tariff weight unit | kg |
| Hole shape | cylindrical | Unit material | Gray cast iron | Model | square |
| Model series | RCJ.. | Thread | M6 | Relubrication possible yes/no | yes |
| Customs tariff weight per | 1 | Customs tariff country of origin | DE |
Configure
Basic Attributes
-
Shaft Bore Dia. d(mm)
-
B1(mm)
-
Housing
-
d3 max.(mm)
-
Customs tariff weight(kg)
-
Center hole distance J(mm)
-
Unit code
-
Unit width A(mm)
-
Unit length L(mm)
-
A1(mm)
-
Bearing code
-
Protection cap
-
A2(mm)
-
U(mm)
-
V(mm)
-
Width/diameter of fixing hole N(mm)
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
